Custom Capabilities Creating Business Opportunities For Schweiss

Radiation_Technology_1
The Schweiss door above, built for North Star Imaging, is 40' wide x 9' tall and features built-in lead shielding.

By Dick Hagen,
Public Relations Writer for Schweiss Doors



The creativity of customers continues to be a driving force for many manufacturers. Take for example North Star Imaging, Inc., a Rogers, Minnesota manufacturer of industrial x-ray systems. These systems are enclosed by a radiation shielding cabinet and access door and are used by manufacturing firms in the aerospace, military, automotive, medical device, electronics, genetic seed industries and more.

As more and more companies realize the benefits of X-ray inspection, the size of various products needing x-ray inspection continues to expand as well. And this means bigger doors; doors with built-in lead radiation shielding.

Two of North Star Imaging’s recent projects are perfect examples. Each of its clients, one in Texas and the other in Connecticut, needed extra large access doors for their new NSI X-ray systems. Given the built-in lead shielding, lifting the 40’-wide doors was one of the primary design challenges.

The Internet to the rescue!

"We first learned about Schweiss Doors on the Internet. Their web site (www.schweissdoors.com) is loaded with information," said Lou Ortega, Director of Engineering, North Star Imaging, Inc. "We saw that Schweiss offered two choices, bifold or hydraulic. Bifold doors were new to us. But when we checked out the specs, the opening and closing mechanism, plus the fact that the bifold door essentially opens straight up, we could readily see the mechanical advantage of a shielded bi-fold door."

As the name implies, a radiation-shielded door has to be precisely engineered to provide protection during x-ray procedures. Yet this door also has to meet specific specs at each installation location. As NSI engineers analyzed their challenges, a Schweiss bifold, headquartered in Fairfax, Minnesota, seemed to be a perfect answer.

North_Star_promotion

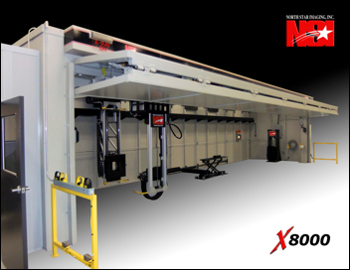

The large door opening is one of the featured aspects of North Star Imaging's promotion of its new model X8000 x-ray booth.

Said Ortega, "To my knowledge this is the first time a door of this type has been used in a radiation shielded enclosure. I have been in the x-ray business for 17 years and can tell you that this door coupled with the radiation enclosure is a very impressive system."

The two units installed were both 40' wide and 9' high providing a 7' vertical clearance. The 'protective' lead liner was 1/8th inch diameter thick and weighed 5,000 pounds! Sandwiched with metal siding on both sides, total weight of these doors was 9,300 pounds. Schweiss provided a heftier framework plus equipped each door with 7 of their patented lift-strap units.

"The lift-strap mechanism is what makes this door so functional. A single-piece hydraulic with lead liner would simply be too heavy," explained Ortega. And because of safety considerations of a door this heavy, Schweiss constructed a special 'Dead Man' switch, which requires both hands of the door operator when opening and/or closing the door.

Rod Meyer, National X-Ray Sales Manager, North Star Imaging, said initial reactions to this unique concept of a leaded bifold door for radiation shielding has been very positive. "Clients have been very surprised by the looks of the door, the smoothness and quiet operation, and the overall functionality. They were impressed and recognized this as a great engineering feat."

Mike Schweiss
Mike Schweiss

Special customized doors are nothing new for Schweiss Mfg., a Minnesota firm with 34 years designing and building doors for clients around the world. Schweiss created the concept of 'Designer Doors' and works with architects and builders to provide either bifolds or one-piece hydraulic units. "We truly do custom manufacture every door. We design and build around the customer's needs," said CEO Mike Schweiss.

"Because we had a customer doing x-ray inspections on a 38'-long component metal product, we knew we needed a special door," related Meyer. "When our engineering team found the Schweiss bifold, they could see that this was a special door package that would be big enough, yet conveniently fit the closure space required for this particular x-ray facility. We decided to move forward with the Schweiss system. They responded efficiently and professionally. We now confidently look ahead to more markets with existing clients and potential clients throughout the world."

North Star Imagining, Inc. is the leading manufacturer of industrial X-ray systems in the USA. NSI also has clients in China, Singapore and other countries around the world. Industrial X-ray inspection has many uses; some applications consist of detecting even the most minute imperfection in a metal or weld. Other uses are taking internal measurements of a critical product when creating a 3D model for use in reverse engineering and much more.

As large as the doors for the x-ray booths are, they're nowhere closed to the largest Schweiss had done. For a New Jersey-based aviation company Schweiss provided a monster of a door measuring 130' wide x 36' high.

About Schweiss Doors

Schweiss-logoBased in Fairfax, MN, Schweiss Doors is a leading manufacturer of bifold and hydraulic one-piece doors, and is an established leader in the design and manufacture of designer and custom doors for all types and sizes of buildings. No door is too small or too big for Schweiss Doors. The company has more than three decades of experience and has sold its doors worldwide. Key markets for the company’s doors are aviation, agriculture, commercial and industrial, but its products have been used in theaters, major league ballparks, homes, exclusive hotels and buildings of all types. To learn more, visit www.bifold.com or www.schweisshydraulicdoors.com.

And to learn about Schweiss' new Build Your Own Door Kit, which gives customers the plans and essential components to build their own Schweiss Doors, visit www.bifold.com/build-your-own-door.php.
